9 series · 42 machines & lines
Machines, measured in millimetres and kilograms
Every SKR series in one place, with the specifications SKR publishes for its most requested lines. Pick a PVC pipe model to see its diameter range, output and power.

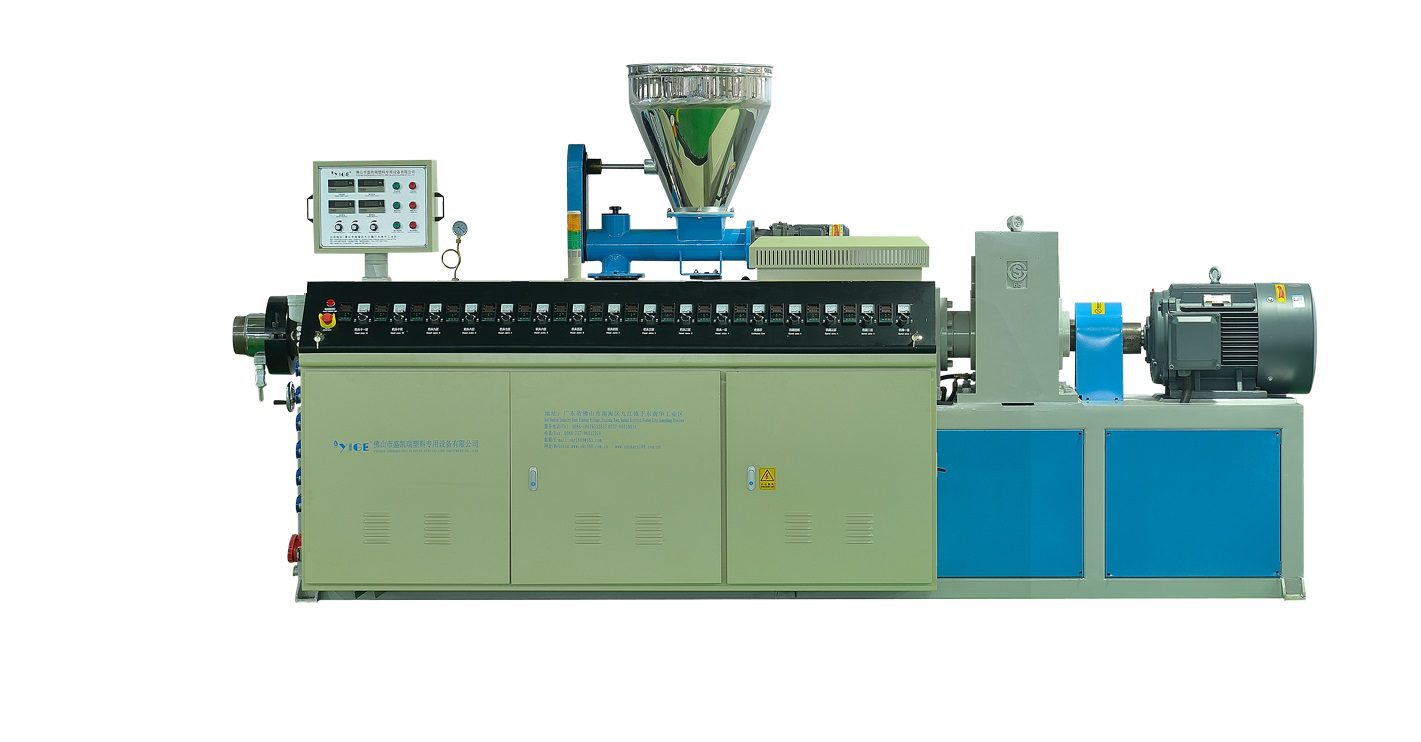

SKR-SJZ · conical twin-screw · PLC
Catalogue
All series
Filter by stage of the line. Each line can be configured with different moulds and auxiliary machines for the product you make.
PVC pipe extrusion
- PVC pipe making machine
- PVC double-outlet conduit line
- PVC 2-outlet pipe machine
- PVC 4-outlet pipe machine
PE, PP & PPR pipe
- HDPE/PPR straight pipe line

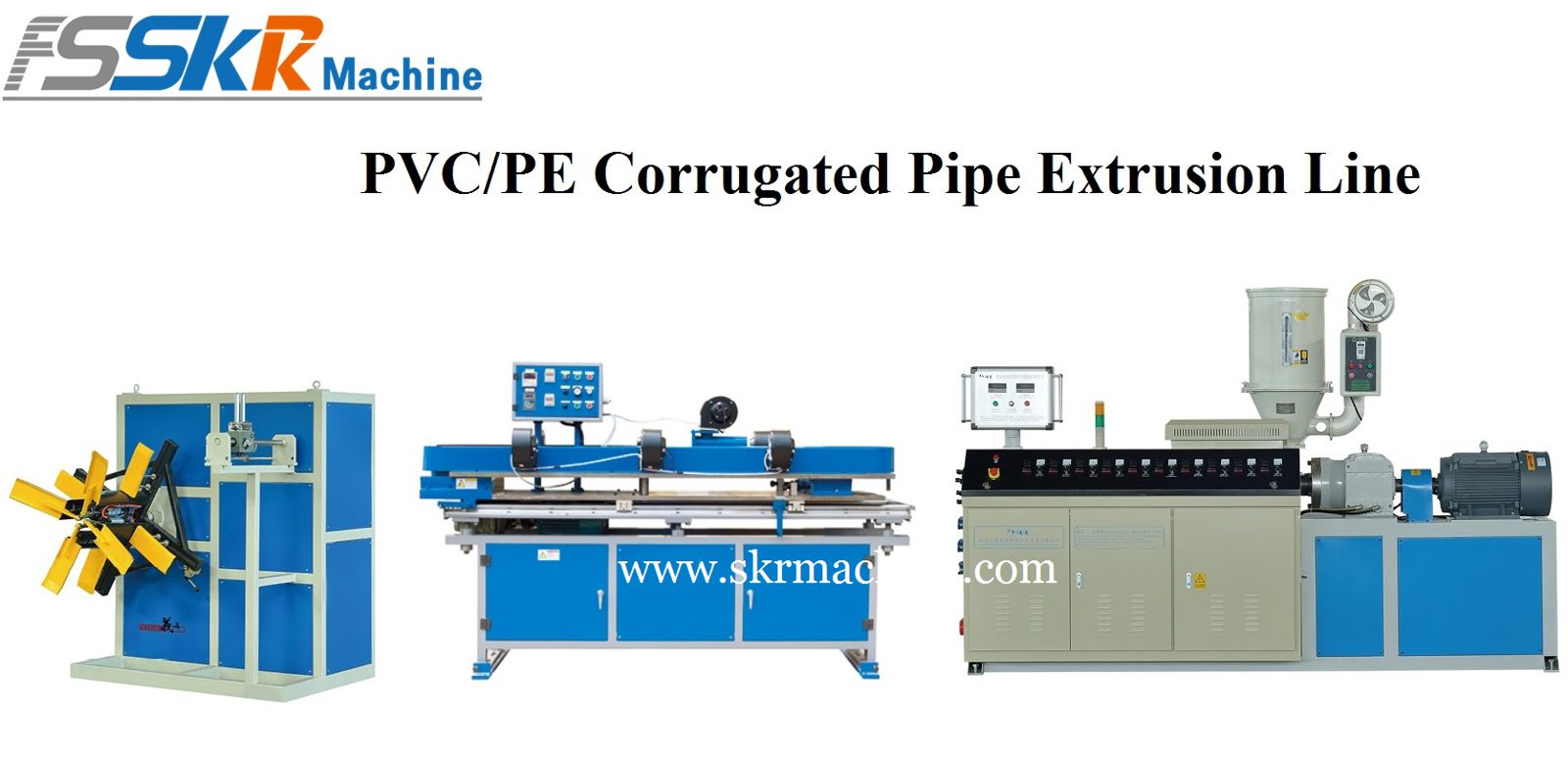

- PVC/PP/PE corrugated pipe machine
- PP/PE multilayer composite pipe
- HDPE coil pipe machine
PVC/PP/PE/PS profile
- PVC/PE WPC line
- PVC cable trunking line
- PVC composite profile line
- PVC/PS hot printing line
- PVC profile line
- PVC special-shaped profile line
- PVC edge banding line
- PVC wide door board line
Plastic pelletizer
- PVC hot-cutting granulation line
- PE/PP/ABS co-rotating twin-screw granulation

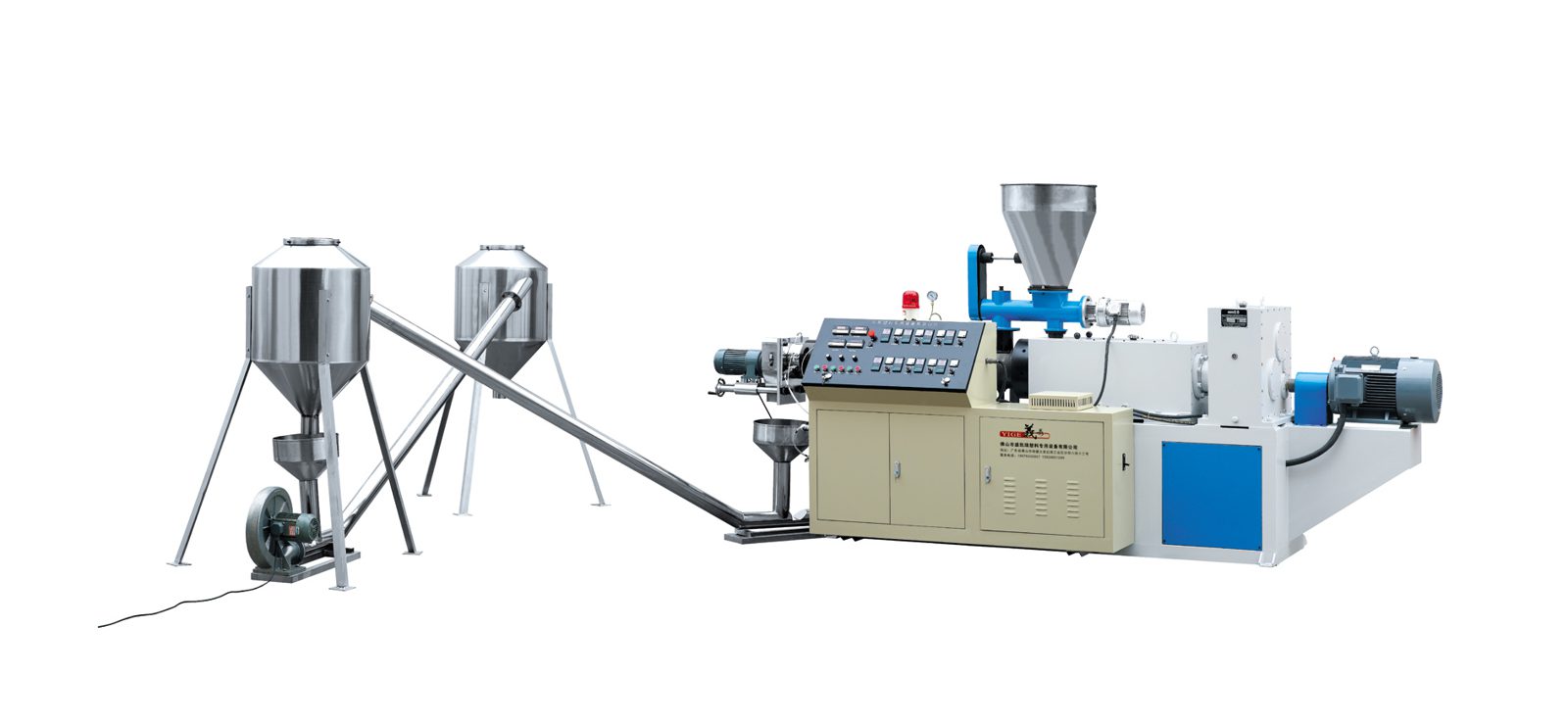

- PVC hot pelletizing machine
Laminating machine
- SKR-700 multifunction
- SKE-700 PUR hot glue
- SKR-300 EVA / multifunction / PUR
- PUR & paper sticking lines
- Panel, roll sheet laminating line
PVC pipe socketing
- 1-outlet belling machine
- 2-outlet belling machine
- 4-outlet belling machine
High-speed mixer
- SKR-L high-speed mixer unit
- SKR-Z high-speed mixer
Auxiliary & accessories
- SKR200 hot stamping machine
- Crusher for PVC pipe
- Pulverizer
- Slitter, panel turnover machine
- Coating machine fittings
Model explorer
PVC pipe making machine
Conical twin-screw extruder, vacuum sizing tank, haul-off, cutter and stacker — for agricultural and building water supply, drainage and cable laying.
40–110pipe Ø, mm
Choose a model
Max capacity180 kg/h
Main motor30 kW
Screw dia.55/120 mm
Haul-off speed0–8 m/min
Total power68 kW
Pipe range16–630 mm
- Imported AC frequency control on extruder and haul-off
- Haul-off with 2, 3, 4, 6 or 8 claws by pipe diameter
- Planetary or annular cutter with full automatic computer control
- Optional units for inner-spiral, hollow-wall and foam-core pipe; PP, PE, ABS, PPR and silicon-core pipe
| Host model | SKR-SJZ51 | SKR-SJZ55 | SKR-SJZ65 | SKR-SJZ80 | SKR-SJZ92 |
|---|---|---|---|---|---|
| Screw dia. (mm) | 51/105 | 55/120 | 65/132 | 80/156 | 92/188 |
| Max capacity (kg/h) | 120 | 180 | 280 | 480 | 650 |
| Haul-off speed (m/min) | 0–20 | 0–8 | 0–5 | 0–3 | 0–1.5 |
| Main motor (kW) | 18.5 | 30 | 37 | 55 | 90 |
| Pipe diameter (mm) | 16–75 | 40–110 | 50–160 | 110–315 | 250–630 |
| Auxiliary model | SKR-GC75A | SKR-GC110 | SKR-GC160 | SKR-GC315 | SKR-GC630 |
| Total power (kW) | 55 | 68 | 85 | 128 | 252 |
| Line length / width (m) | 18 / 2.5 | 22 / 3 | 22 / 3.5 | 28 / 4.5 | 24 / 6 |
Specifications and standard equipment are subject to change without notice. Source: SKR product data.
Wood-plastic composite

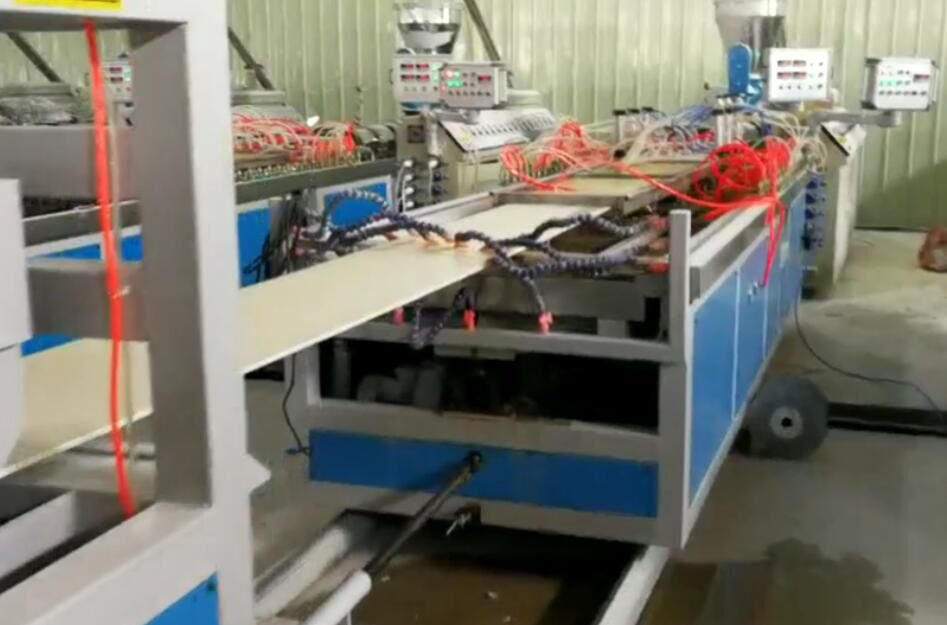

PVC/PE WPC extrusion line
A specially designed barrel and screw for wood-plastic products. The extruder can run stand-alone, extrude two mixed materials directly, or re-extrude after granulation — saving power and space with stable extrusion pressure and good plasticizing.
- Conical twin-screw extruder, vacuum forming table, haul-off, cutter and rack
- WPC panel, profile and board with the look and feel of wood
- Used in construction, furniture, decoration and cabinets
| Host model | SKR-SJZ51 | SKR-SJZ55 | SKR-SJZ65 | SKR/SJZ-80 | SKR/SJZ-92 |
|---|---|---|---|---|---|
| Main motor power (kW) | 18.5 | 22/30 | 37 | 55/75 | 90/110 |
| Auxiliary model | SKR-XC150A | SKR-XC200A | SKR-XC350A | SKR-XC750A | SKR-XC1200A |
| Haul-off speed (m/min) | 0.5–12 | 0.5–8 | 0.5–4 | 0.5–3 | 0.5–2 |
| Total power (kW) | 54 | 71 | 85 | 125 | 225 |
| Capacity (kg/h) | 120 | 150 | 250 | 350 | 650 |
| Covered area (m) | 16 / 2.5 | 17 / 2.5 | 19 / 3 | 23 / 3.5 | 27 / 4 |
Surface decoration
SKR-700 multifunction laminating machine
Full steel body with high-precision worm drive and steady workpiece transmission, stepless frequency speed control and a fully automatic digital control system. Coats angles, circular, concave-convex and roll-rim shapes for building, furniture, window, door and decorative-bar factories.
Coating width300–1300 mm
Max thickness60 mm
Speed · cold glue0–25 m/min
Speed · PUR hot glue0–50 m/min
Min length600 mm
Heating / motor6 kW / 1.5 kW
Spec questions
Choosing a line
Which SKR PVC pipe line do I need for 110 mm pipe?
110 mm falls in the range of the SJZ55 line (40–110 mm). 110 mm is also the lower end of the SJZ80 line (110–315 mm).
What does an SKR PVC pipe line include?
A conical twin-screw extruder, vacuum sizing tank, haul-off, cutting machine and stacker. The haul-off can have 2, 3, 4, 6 or 8 claws, and the cutter can be planetary or annular.
What can the SKR-700 laminating machine coat?
Wall panels, profiles, aluminium-plastic profiles and similar parts, covered with PVC film, melamine paper, artificial wood veneer or wood veneer, using oily cold glue or PUR hot glue.
Are the published specifications final?
No. SKR notes that specifications and standard equipment are subject to change without notice, so confirm the configuration with the export team.
